Product Description:

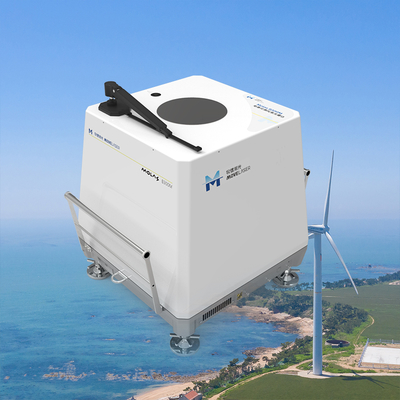

Wind lidar Molas B30oM is a specialized tool for measuring wind energy offshore. It builds upon the key features of the ground-based wind lidar Molas B300. This device is tailored to withstand the demanding conditions encountered at sea. Equipped with a high-precision inertial measurement unit and an attitude compensationalgorithm, it is capable of being deployed on non-fixed platforms like buoys and ships to provide real-time wind speed measurements with high accuracy.
Features:
Low cost: Whether used with monopile platforms or buoys, the price is significantly lower than that of constructing offshore wind towers.
Large range: Ranging from 20 to 350m, with 12 or 24 custom height levels available.
High precision: Providing full life cycle support, accuracy reaching up to 0.1m/s and 1°.
Time-saving and efficient: Short project construction period helps save valuable time and costs.
Flexible configuration: Features flexible wireless connection for remote configuration delivery and data transmission.
Data security: Utilizing data encryption to ensure no risk of data leakage.
Non-contact measurement: Offering convenient and fast non-contact measurement, leading the industry.
Technical Parameters:
|
Measuring Distance
|
Ordinary Type 20~350m
|
|
Protection Class
|
IP68(whole Machine)
|
|
Wind Direction Range
|
0~360°
|
|
Weight
|
≤50kg
|
|
Sampling Rate
|
1Hz
|
|
Temperature Range
|
-40°C~60℃
|
|
Humidity Range
|
0% To 100%
|
|
Powered By
|
24V±5%DC,100~230VAC
|
|
Size
|
554*430*576mm³ (including Handle)
|
|
Wind Speed Accuracy
|
0.1m/s
|
Applications:
Movelaser's Offshore Wind Lidar product, the Molas B300M, is a cutting-edge remote wind measurement tool that is designed for a wide range of product application occasions and scenarios.
With its high-quality construction and advanced technology, the Molas B300M is perfect for offshore wind energy projects. Its accurate wind measurement capabilities make it ideal for optimizing wind farm performance and ensuring maximum energy production.
The Molas B300M can also be used in meteorological research to study wind patterns and behavior in offshore environments. Its reliable performance and precise data collection make it a valuable tool for scientific studies and environmental monitoring.
Furthermore, the Molas B300M is well-suited for maritime applications, such as offshore vessel operations and marine research. Its compact design and lightweight construction, weighing no more than 50kg, make it easy to transport and deploy in various marine settings.
Whether it's for offshore wind farm development, meteorological research, or maritime operations, the Molas B300M offers unmatched versatility and performance. Its wide temperature range of -40°C to 60°C, humidity range of 0% to 100%, and wind direction range of 0 to 360° ensure accurate and reliable data collection in diverse environmental conditions.
Manufactured in China, the Molas B300M is powered by 24V±5%DC or 100-230VAC, providing flexible power options for different applications. Each set comes with a minimum order quantity of 1 and is packaged in a sturdy flight case for safe transportation and storage. Delivery time is customizable to meet specific project timelines and requirements.
